磁粉色卡TYPE 2000磁条卡TYPE A磁粉检测（MPI）材料的灵敏度
更新：2021/3/25 10:50:33 点击：724
- 产品型号 TYPE 2000
- 产品描述 A型和2000型磁条卡是一种简单的工具，有助于评估湿法和干法磁粉检测（MPI）材料的灵敏度。每张卡上的磁条都包含一个标准化的磁条长度方向的磁线图案。颗粒被吸引到这些线条上，形成视觉指示。卡片作为试件，补充了ASTM D-96沉降管、酮环和其他MPI材料试验
产品介绍
磁粉色卡TYPE 2000磁条卡TYPE A磁粉检测（MPI）材料的灵敏度
TYPE 2000 MSC - This card is recognized as a tool for evaluation of fluorescent weth method baths in ASTM E709-01 "Standard Guide for Magnetic Particle Examination", Paragraph 20.6.8 and Appendix X4; as well as in ASTM E-1444-05 "Standard Practice for Magnetic Particle Testing", Appendix X7.3.
TYPE 2000型MSC-该卡被公认为ASTM E709-01“磁粉检验标准指南”第20.6.8段和附录X4以及ASTM E-1444-05“磁粉检验标准规程”附录X7.3中荧光湿浴法评定的工具。

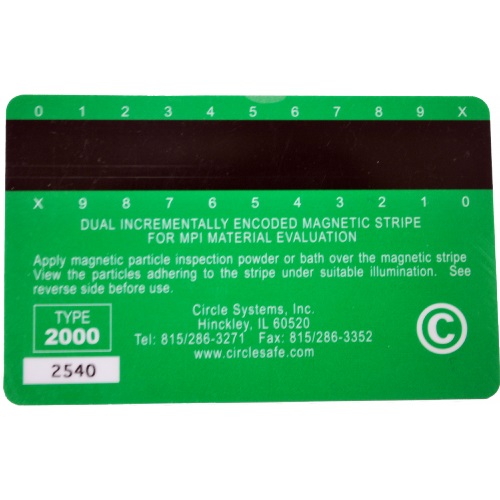

TYPE A and TYPE 2000 MAGNETIC STRIPE CARDS are simple tools that assist in evaluating the sensitivity of wet-method and dry-method magnetic particle inspection (MPI) materials. The stripe on each card contains a standardized pattern of magnetic lines across the length of the stripe. Particles are attracted to these lines and form visual indications. The cards act as a test piece and supplement the ASTM D-96 settling tube, Ketos ring and other tests for MPI materials.
The TYPE A - HIGH COERCIVITY CARD (3600 Oersted) is recommended to evaluate dry method particles and larger size wet-method particles.
The TYPE 2000 - COERCIVITY CARD (300 Oersted) is recommended to evaluate finer size wet-method particles and high-sensitivity materials
A型和2000型磁条卡是一种简单的工具，有助于评估湿法和干法磁粉检测（MPI）材料的灵敏度。每张卡上的磁条都包含一个标准化的磁条长度方向的磁线图案。颗粒被吸引到这些线条上，形成视觉指示。卡片作为试件，补充了ASTM D-96沉降管、酮环和其他MPI材料试验。
推荐使用A型HIGH COERCIVITY CARD（3600 oersted）来评估干法颗粒和较大尺寸的湿法颗粒。
推荐使用2000型COERCIVITY CARD（300 oersted）评估更细尺寸的湿法颗粒和高灵敏度材料。
TYPE 2000 MSC - This card is recognized as a tool for evaluation of fluorescent weth method baths in ASTM E709-01 "Standard Guide for Magnetic Particle Examination", Paragraph 20.6.8 and Appendix X4; as well as in ASTM E-1444-05 "Standard Practice for Magnetic Particle Testing", Appendix X7.3.
TYPE 2000型MSC-该卡被公认为ASTM E709-01“磁粉检验标准指南”第20.6.8段和附录X4以及ASTM E-1444-05“磁粉检验标准规程”附录X7.3中荧光湿浴法评定的工具。
TYPE A and TYPE 2000 MAGNETIC STRIPE CARDS are simple tools that assist in evaluating the sensitivity of wet-method and dry-method magnetic particle inspection (MPI) materials. The stripe on each card contains a standardized pattern of magnetic lines across the length of the stripe. Particles are attracted to these lines and form visual indications. The cards act as a test piece and supplement the ASTM D-96 settling tube, Ketos ring and other tests for MPI materials.
The TYPE A - HIGH COERCIVITY CARD (3600 Oersted) is recommended to evaluate dry method particles and larger size wet-method particles.
The TYPE 2000 - COERCIVITY CARD (300 Oersted) is recommended to evaluate finer size wet-method particles and high-sensitivity materials
A型和2000型磁条卡是一种简单的工具，有助于评估湿法和干法磁粉检测（MPI）材料的灵敏度。每张卡上的磁条都包含一个标准化的磁条长度方向的磁线图案。颗粒被吸引到这些线条上，形成视觉指示。卡片作为试件，补充了ASTM D-96沉降管、酮环和其他MPI材料试验。
推荐使用A型HIGH COERCIVITY CARD（3600 oersted）来评估干法颗粒和较大尺寸的湿法颗粒。
推荐使用2000型COERCIVITY CARD（300 oersted）评估更细尺寸的湿法颗粒和高灵敏度材料。
